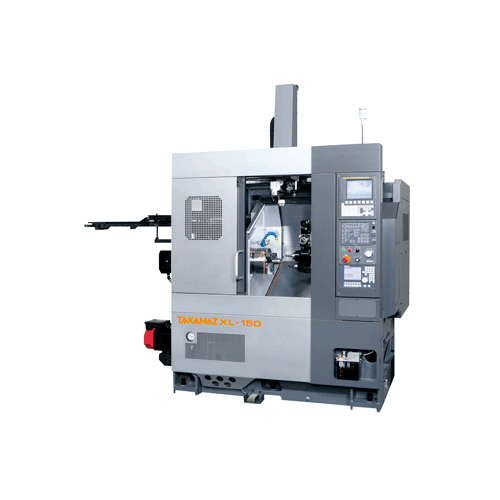

XL150 Single Spindle
Single Turret – Tail Stock – Loader
The standard spindle motor output is 11/7.5kW (X-150PLUS: 7.5/5.5kW). As an option, 15/11kW is available and with this increase in capacity, 60% increase in cross-sectional area processing capacity is achieved. In addition, the spindle through diameter of φ65 is available as an option. With this option, larger diameter bar material can be cut. With the motor output of 5.5/3.7/2.2kW, this machine is equipped with φ20 maximum tool size milling unit that is 2.5 times larger than previous models. This is better by 1.7 times the cutting removal capacity resulting in wide range of cutting application and significant reduction in machining.
The floor space is the same as that of the [X-150 PLUS], but the Z-Axis stroke is 400mm(X-150PLUS: 330mm). This is approximately an increase of 20% that can correspond to long work shaft of up to 370mm.
| Spindle Size / Design | A2-6 (A2-8) |
| Spindle Speed (r.p.m) | 3,500 (5,000 4,000) |
| Power (Kw) | 7.5 / 5.5 (11.5 / 7.5) |
| Bar Capacity (mm) | Solid (26Ø, 51Ø, 65Ø) |
| Numerical Controller | Fanuc Oi-TD |
| Axis Slides Design | BOX SLIDES |
| X Axis Stroke (mm) | 190 |
| Z Axis Stroke (mm) | 400 |
| Rapid Rates (m/min) | X:18 Z:24 |
| Chuck Size (mm) | 200 (250) |
| Machine Weight (Kg) | 3,400 |
| Machine Dimension LWH (mm) | 1,690 x 1,535 x 1,700 |
| Gantry Loader | GANTRY 2 AXIS LOADER |
| Conveyor Option | STOCKERS / CONVEYORS |
| Tool Changer Style | SERVO ROTARY TURRET |
| Tool Capacity (pcs) | 8 (12) |
| Power Tooling | (12 TOOLS 4,000RPM) |
| Chip Conveyor | SPIRAL / SLATBAND REAR |
