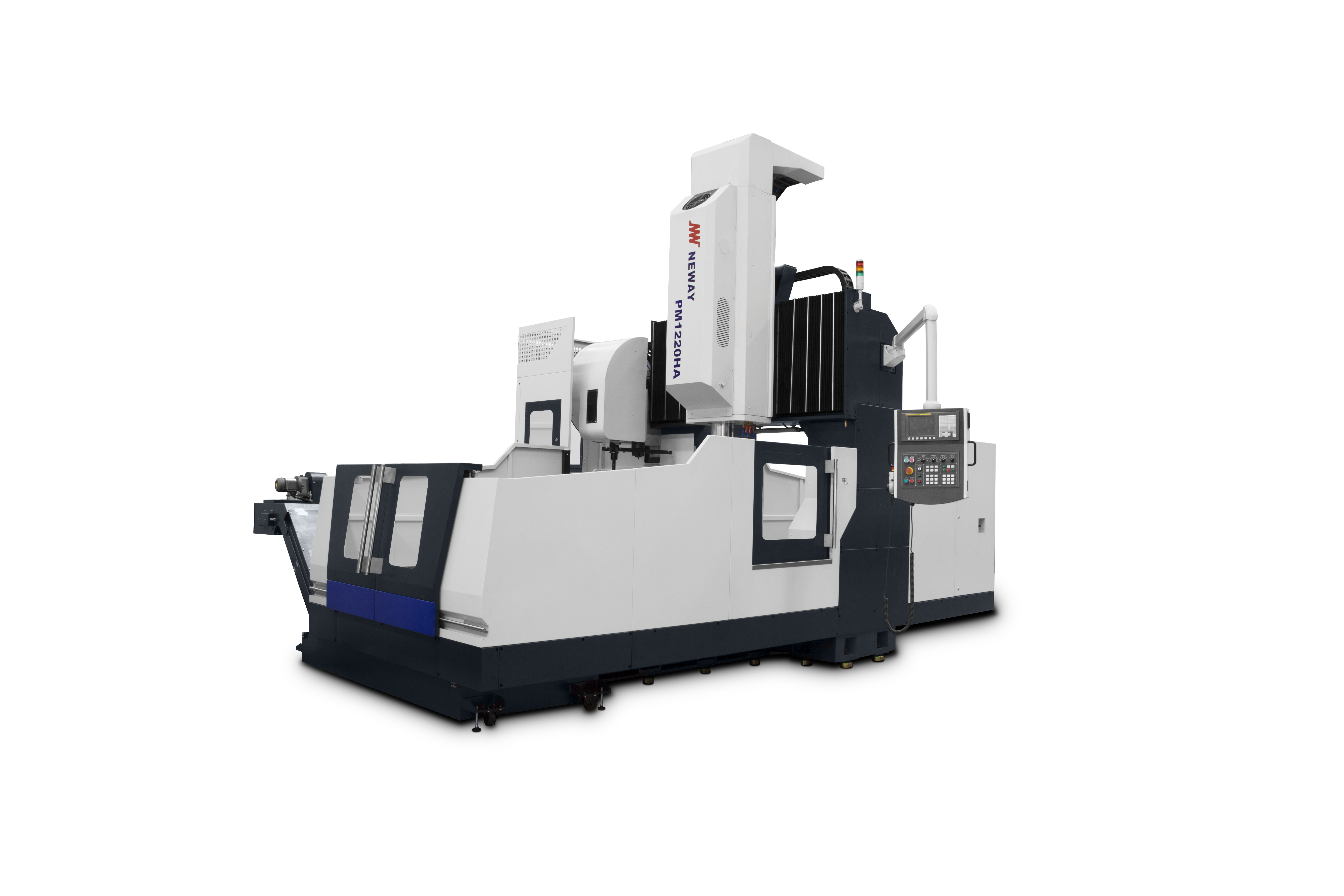

PM1220HA

PM1220HA

The PM range of machines are Portal and Gantry style machines. Table sizes from 1200 x 2000 to 3000 x 12,000

Fanuc 0i MF Control with USB Port,
CF card Port,
RS232 Interface and 8.4″ Color LCD Display
Massive Meehanite cast iron bed with integral structure to guarantee the rigidity
8000rpm belt drive spindle with oil chiller
Cam Type, Arm ATC (24 tool, disc type)
Servo motors mounted directly to the oversized, double nuts ball screws
Flood coolant with large separate coolant tank with way oil skimmer
Portable Manual pulse generator imported from European
Chain-Type Chip Conveyor
Hydraulic system and Automatic Lubricating System
Air cooling and Air Gun cleaner
Air Blast around Spindle
Spindle Protecting Air Curtain
Work light and 3 color tower signal light
Full enclosure splash guard
Telescopic cover on all axis

For more information and the complete range of machines please see our brochure


Specifications
Spindle Size / Design BT50
Spindle Speed (r.p.m) 6,000
Power (Kw) 15 /18.5
Numerical Controller FANUC Oi-TM V1 / Siemens
Axis Slides Design LINER GUIDES
X Axis Stroke (mm) 2,200
Y Axis Stroke (mm) 1,200
Z Axis Stroke (mm) 800
Rapid Rates (m/min) X:24 Y:24 Z:15
Table Size (mm) 1,200 x 2,000
Max Table Weight (Kg) 3,500
Machine Weight (Kg) 19,000
Tool Changer Style CAB BOX ARM RANDOM
Tool Capacity (pcs) 24, 32, 40, 60
