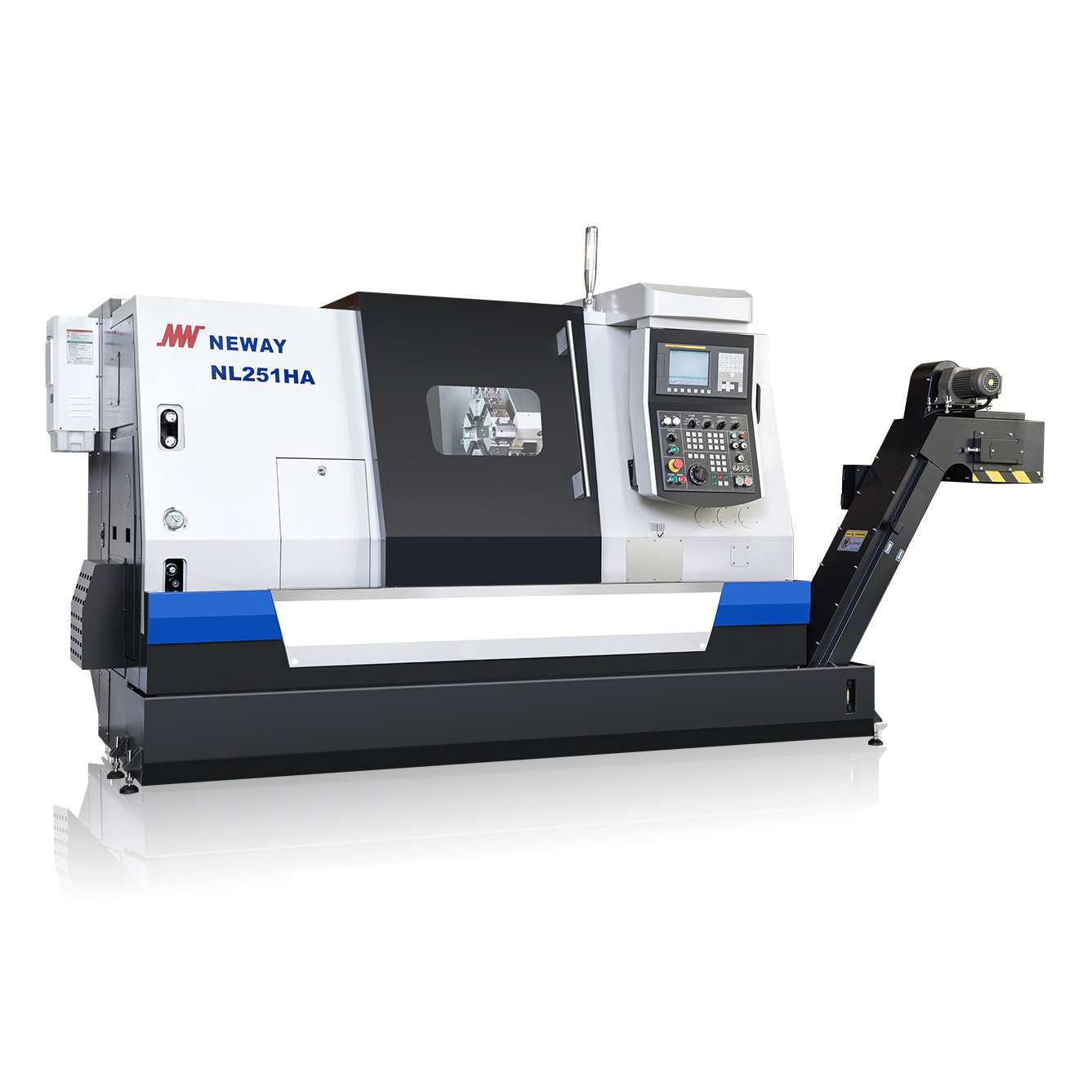

NL251HA

NL251HA

This mid range lathe is equiped with Fanuc OiTF Version 1 including all CE marking and dual safety functions.
The basic package is a 2 axis lathe with 51mm bar capacity 5000 rpm and a programmable tail body and quill and parts catcher.
Maximum turning length is 410mm and diameter 320mm.

Introductory offers are available on first 3 machines installed.


Specifications
Spindle Size / Design A2-6
Spindle Speed (r.p.m) 5,000
Power (Kw) 11 / 15
Bar Capacity (mm) 51
Numerical Controller FANUC Oi-TM V1
Axis Slides Design LINEAR RAIL
X Axis Stroke (mm) 240
Z Axis Stroke (mm) 430
Rapid Rates (m/min) X:24 Z:30
Chuck Size (mm) 200
Machine Weight (Kg) 4,000
Parts Catcher ( D x L ) 60 x 160
Tool Changer Style HYDRAULIC ROTARY TURRET
Tool Capacity (pcs) 12
Tail Stock MT5
Tail Stock Body POWERED BY Z Axis
Tail Stock Quill (mm) 100
Chip Conveyor SLATBAND RIGHT
