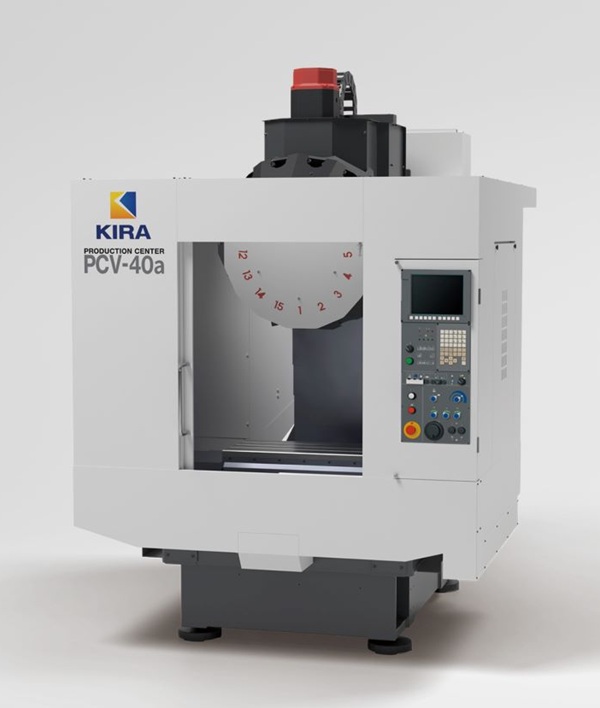

PCV-40a Table Traverse M/C
Machine width 1800mm allows for minimal floor space in a highly compact design.
Improve your production efficiency with bare minimum of features.
The ability and size is perfect fit for machining of bracket and manifold parts for automotive.
Ideal design to incorporate in production lines.
Direct spindle and ATC system
| Spindle Size / Design | BT40 |
| Spindle Speed (r.p.m) | 6,000, 10,000, 15,000, 20,000 |
| Numerical Controller | FANUC Oi-MD |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 700 |
| Y Axis Stroke (mm) | 400 + 200 (Loading Area) |
| Z Axis Stroke (mm) | 400 |
| Rapid Rates (m/min) | 56m/min |
| Table Size (mm) | 800 x 400 |
| Max Table Weight (Kg) | 500 |
| Machine Weight (Kg) | 3700 |
| Tool Changer Style | DIAL MAGAZINE |
| Tool Change T/T (sec) | 1.6 |
| Tool Capacity (pcs) | 15 tools |
