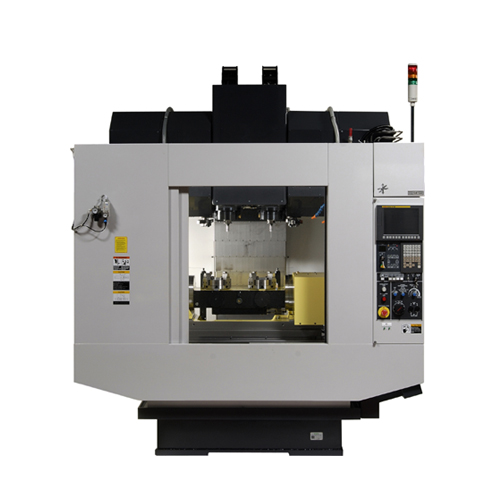

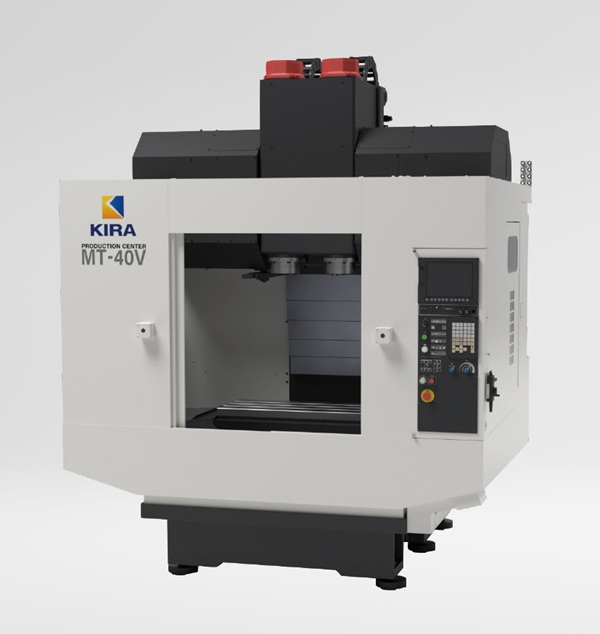

MT-40V
Revolution of Production, Achieve Ultra High Productivity
Development target is 200% productivity compared to single spindle machine
2 spindles on 1 machine, machining 2 work parts all at once
It is condensed 2machines to 1machine, Reduction total machine , floor space, Total cost
No. of tools
20 tools + 20 tools
Distance between 2 spindles
standard : 320mm
option : 450mm
Spindle speed
standard : 8000min-1(10HP)
option : 12000min-1(10HP), 8000min-1(20HP)
Rapid traverse
48m/min
| Spindle Size / Design | BT40 |
| Spindle Speed (r.p.m) | 8,000 12,000 |
| Power (Kw) | 5.5/3.7 |
| Numerical Controller | FANUC 21i-MB |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 700 |
| Y Axis Stroke (mm) | 600 |
| Z Axis Stroke (mm) | 400 |
| Rapid Rates (m/min) | X:48 Y:48 Z:36 |
| Table Size (mm) | 1,000 x 400 |
| Max Table Weight (Kg) | 200 |
| Machine Weight (Kg) | 5300 |
| Machine Dimension LWH (mm) | 2,200 x 3,000 x 2,810 |
| Tool Changer Style | SERVO ARM RANDOM |
| Tool Change T/T (sec) | 1.5 |
| Tool Capacity (pcs) | 20 + 20 |
