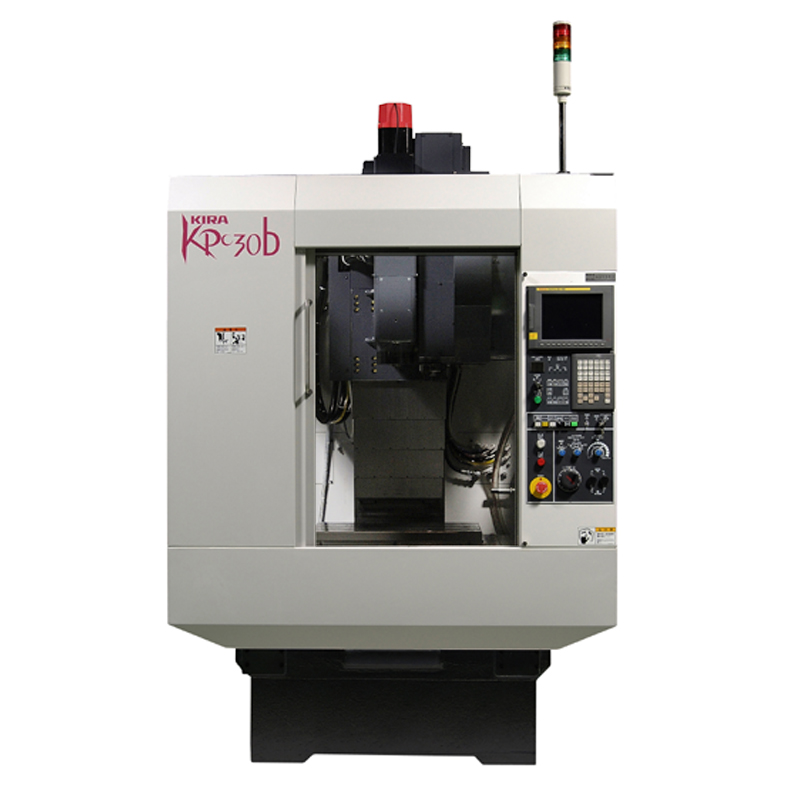

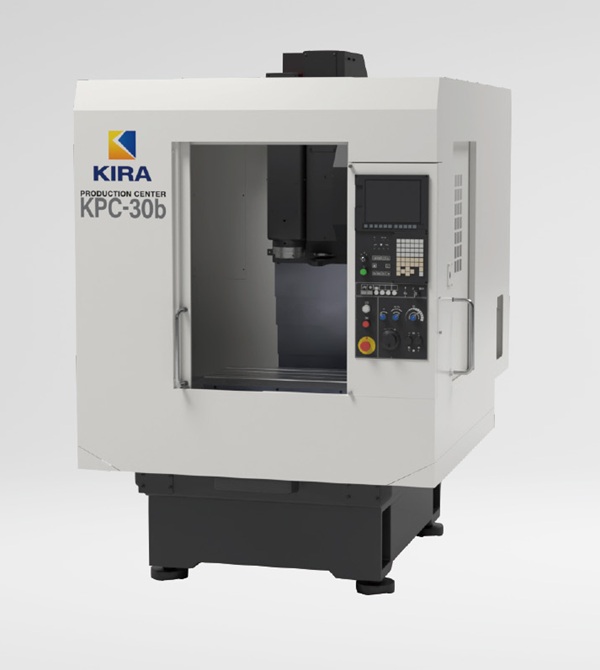

KPC-30b
Investigated High Rigidity #30 machine compares favorably with #40 machine
High Speed machine, Rapid feedrate 56m/min,
Tool change time C-C : 1.7 sec
The spindle construction achieves high rigidity machining
Total 20 tools
It is easy to set up gantry loading system for automation
Spindle Speed : 8000min-1, 15000min-1
| Spindle Size / Design | BT30 |
| Spindle Speed (r.p.m) | 8,000 (15,000) |
| Numerical Controller | FANUC Oi-MB |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 500 |
| Y Axis Stroke (mm) | 380 |
| Z Axis Stroke (mm) | 300 |
| Rapid Rates (m/min) | X:56 Y:56 Z:56 |
| Table Size (mm) | 650 x 380 |
| Max Table Weight (Kg) | 200 |
| Machine Weight (Kg) | 2,500 |
| Machine Dimension LWH (mm) | 1,500 x 2,351 x 2,227 |
| Tool Changer Style | SERVO ARM RANDOM |
| Tool Change T/T (sec) | 1.7 |
| Tool Capacity (pcs) | 20 |
