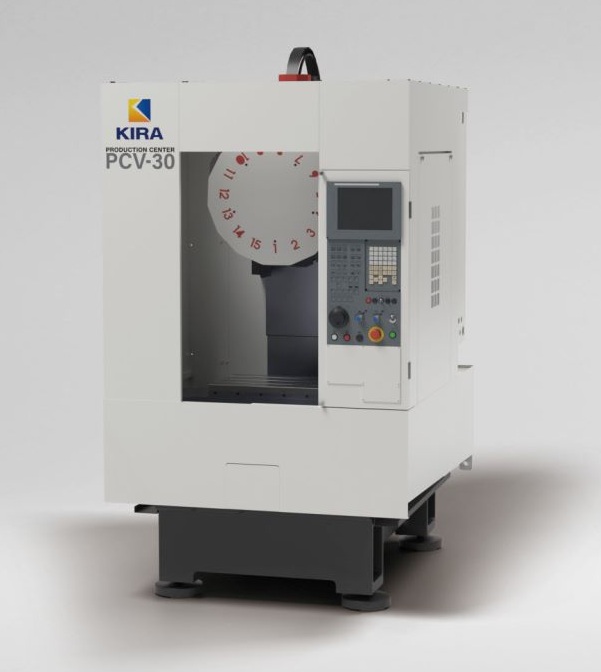

PCV-30 Traverse Table Production Centre
Designed using structural analysis to achieve high rigidity in a #30 machine the linear rails utilize high precision roller linear guides.
High speed machining with rapid rates of 48m/min a tool changer achieving C-C1.9 sec using a direct ATC system.
The Y axis has an additional 200mm so allowing for the integration of loading systems from over head gantry’s or robots clearing the ATC system.
| Spindle Size / Design | BT30 |
| Spindle Speed (r.p.m) | 10,000, 15,000, 24,000 |
| Numerical Controller | FANUC Oi-MB |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 500 |
| Y Axis Stroke (mm) | 300 + 200 (Loading Area) |
| Z Axis Stroke (mm) | 300 |
| Rapid Rates (m/min) | 56 |
| Table Size (mm) | 600 x 350 |
| Max Table Weight (Kg) | 150 |
| Machine Weight (Kg) | 2,200 |
| Tool Changer Style | DIAL MAGAZINE |
| Tool Change T/T (sec) | 1.9 |
| Tool Capacity (pcs) | 15 (21 OPTION) |
