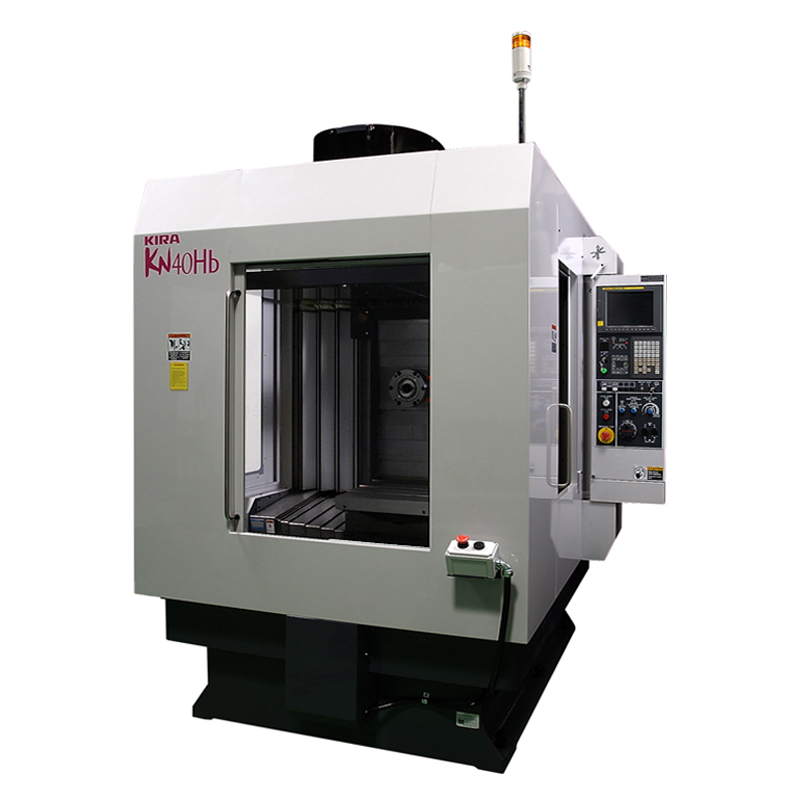

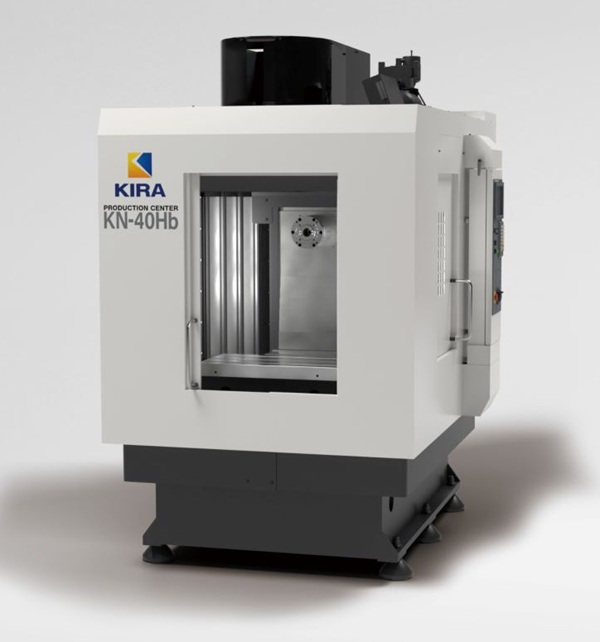

KN40Hb (2API)
Compact design #40 machine
Machine width 1500mm small floor space It is good compact design for product line
Change arm ATC system
Tool change time (T-T)
1.5sec
Total tools
standard
20 tools
option
30 tools
Spindle speed standard\z8000min-1 option
12000min-1, 8000min-1(10HP)
| Spindle Size / Design | BT40 |
| Spindle Speed (r.p.m) | 8,000 12,000 |
| Power (Kw) | 5.5/3.7 |
| Numerical Controller | FANUC 21i-MB |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 500 |
| Y Axis Stroke (mm) | 400 |
| Z Axis Stroke (mm) | 400 |
| Rapid Rates (m/min) | X:48 Y:48 Z:48 |
| Table Size (mm) | 700 x 400 (400 x 400) |
| Max Table Weight (Kg) | 500 (100 + 100) |
| Twin Pallet Option | (2 PALLETS) |
| Machine Weight (Kg) | 4,300 (5,100) |
| Machine Dimension LWH (mm) | 1,500 x 3,550 x 2,600 |
| Tool Changer Style | SERVO ARM RANDOM |
| Tool Change T/T (sec) | 1.5 |
| Tool Capacity (pcs) | 20 (30) |
