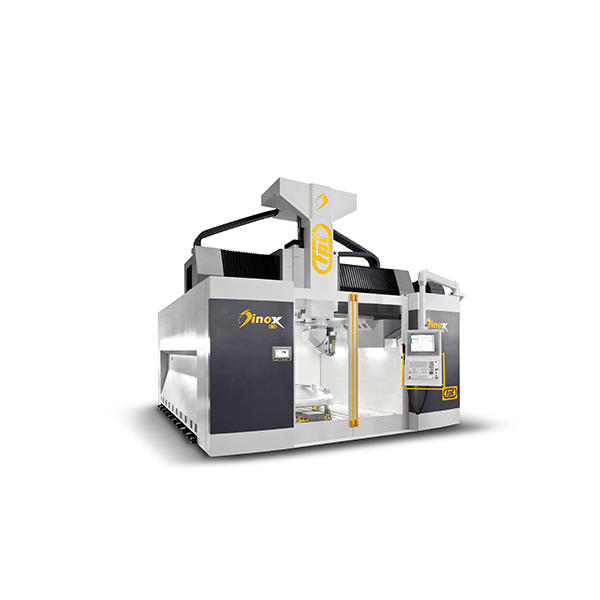

DinoX 220
Compact layout , optimized configuration;
Floor level foundation;
Linear Motors: Double guideways on longitudinal and cross axes;
5-Axis Tulce Head: Universal 5-axis direct drive milling head “TULCE”,with high speed and high positioning accuracy. Undercutting up to 10 degrees;
Stiffness and Expansion Management, automatic geometry re-calibration system for the milling heads;
Machining Precision, Special FPT device with continuous check of machine geometry as to the workpiece and relevant zero-setting;
Accessories: Automatic geometry re-calibration system for the milling heads.
| Spindle Size / Design | HSK A100, HSK A63 |
| Spindle Speed (r.p.m) | 14,000, 18,000 22,000 |
| Power (Kw) | 37, 22, 19, 44 |
| Max Torque (Nm) | 140, 84, 60, 33 |
| Logitudinal Travel (mm) | 2,500 |
| Cross Travel (mm) | 2,200 |
| Vertical Travel (mm) | 1,100 |
| Tool Changer Style | ARM STYLE RANDOM |
| Tool Capacity (pcs) | 25, 60 MULTIPLES OF |
