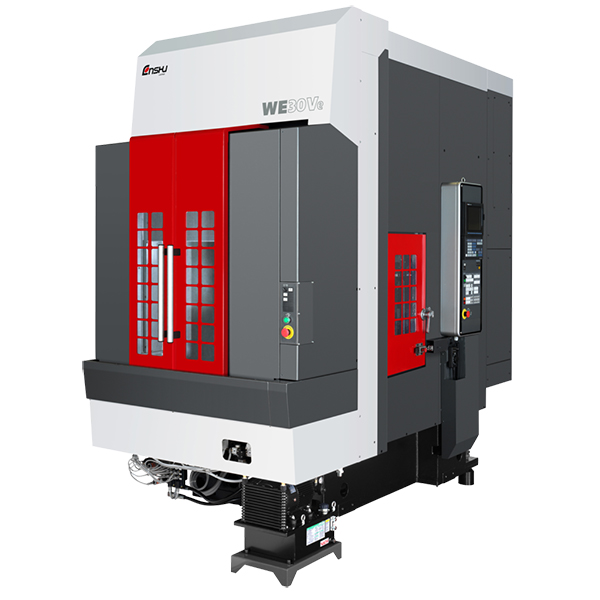

WE30V 2APC

A fusion of high performance and functional beauty, this vertical machining center provides high torque levels in a rigid column structure with an automatic pallet changer for enhanced productivity, making it ideal for large capacity applications.


Specifications
Spindle Size / Design BT30 / HSK
Spindle Speed (r.p.m) 12,000
Power (Kw) 5.5/3.7
Numerical Controller FANUC Oi-MF
Axis Slides Design LINEAR RAILS
X Axis Stroke (mm) 500
Y Axis Stroke (mm) 400
Z Axis Stroke (mm) 300
Rapid Rates (m/min) 50
Table Size (mm) 500 x 380
Max Table Weight (Kg) 200
Twin Pallet Option 2 PALLETS
Machine Dimension LWH (mm) 1,330 x 2,965 x 2,890
Tool Changer Style RADIAL CAROUSEL
Tool Change T/T (sec) 1.9
Tool Capacity (pcs) 21
Chip Conveyor FULL PROCUCTION COOLANT SYSTEMS
