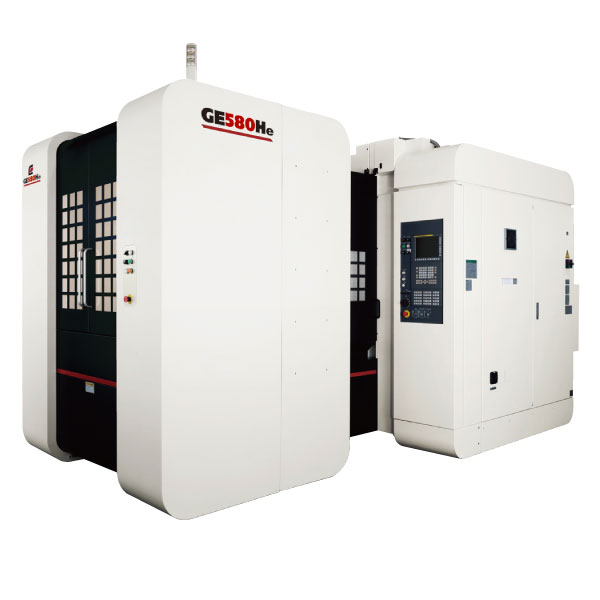

GE580He

The oversized 50-taper spindle of this horizontal machining center provides high metal removal rates in steels and aluminum. With a 500mm pallet and 10,000RPM 54HP spindle, the GE580H promises exceptional cutting performance and thermal stability.


Specifications
Spindle Size / Design MAS BT 50 / HSK
Spindle Speed (r.p.m) 10,000
Power (Kw) 30/25
Numerical Controller FANUC 31i-M
Axis Slides Design LINEAR RAIL
X Axis Stroke (mm) 800
Y Axis Stroke (mm) 800
Z Axis Stroke (mm) 800
B Axis Stroke (deg) 360
Rapid Rates (m/min) 360
Table Size (mm) 500 x 500
Max Table Weight (Kg) 800
Twin Pallet Option 2 PALLETS
Machine Weight (Kg) 10,000
Machine Dimension LWH (mm) 3,285 x 4,665
Tool Changer Style SERVO ARM RANDOM
Tool Change T/T (sec) 2.1
Tool Capacity (pcs) 40
Chip Conveyor FULL PROCUCTION COOLANT SYSTEMS
