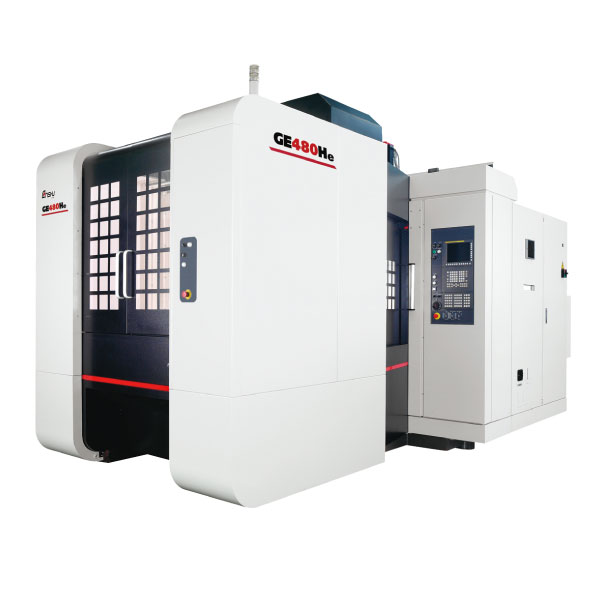

GE480He
The GE480H 40-taper horizontal machining center delivers ultra performance with its large travels, high speeds and heavy cutting spindle. With a 500mm pallet, this HMC continues to impress with its thermal stability and reliability. Plus it is allows for multiple configurations for the greatest machining flexibility.
| Spindle Size / Design | MAS BT 40 / HSK |
| Spindle Speed (r.p.m) | 15,000 |
| Power (Kw) | 37/30/26 |
| Numerical Controller | FANUC 31i-M |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 800 |
| Y Axis Stroke (mm) | 800 |
| Z Axis Stroke (mm) | 800 |
| B Axis Stroke (deg) | 360 |
| Rapid Rates (m/min) | 90 |
| Table Size (mm) | 500 x 500 |
| Max Table Weight (Kg) | 500 |
| Twin Pallet Option | 2 PALLETS |
| Machine Weight (Kg) | 11,000 |
| Machine Dimension LWH (mm) | 2,800 x 4,690 x 2,955 |
| Tool Changer Style | SERVO ARM RANDOM |
| Tool Change T/T (sec) | 1.2 |
| Tool Capacity (pcs) | 60 |
| Chip Conveyor | FULL PROCUCTION COOLANT SYSTEMS |
